Is each unit 99 kW on its own?

No. 99,000 W is the total across 9 paralleled units. A single unit is in the 11 kW class. The parallel figure is a system capacity, and every part of the system — battery bank, cable, switchgear — has to be sized for it.

Can it give me three-phase output?

Yes. Nine units present as 240 Vac single-phase, or as 415 Vac three-phase. That is the reason this model is specified for commercial and light-industrial sites rather than domestic ones.

Which certificates cover this model?

The CE EMC certificate CKEYS251201016 lists it as a covered model. It is also on the FCC SDoC and RoHS 2.0 model lists as series coverage, and on both GB 4943.1-2022 reports as series coverage. It is not in the UDEM LVD+EMC certificate, which covers the HE200 and HE500 ranges only.

HE300-12000-FP — Paralleled Hybrid Inverter, up to 99 kW

Name: HE300-12000-FP Solar Inverter
Brand: Grenkago
SKU: HE300-12000-FP
Availability: InStock

One line: The HE300 line's parallel model — nine units presenting as 240 Vac single-phase or 415 Vac three-phase, for commercial and light-industrial sites that need three-phase supply with backup.

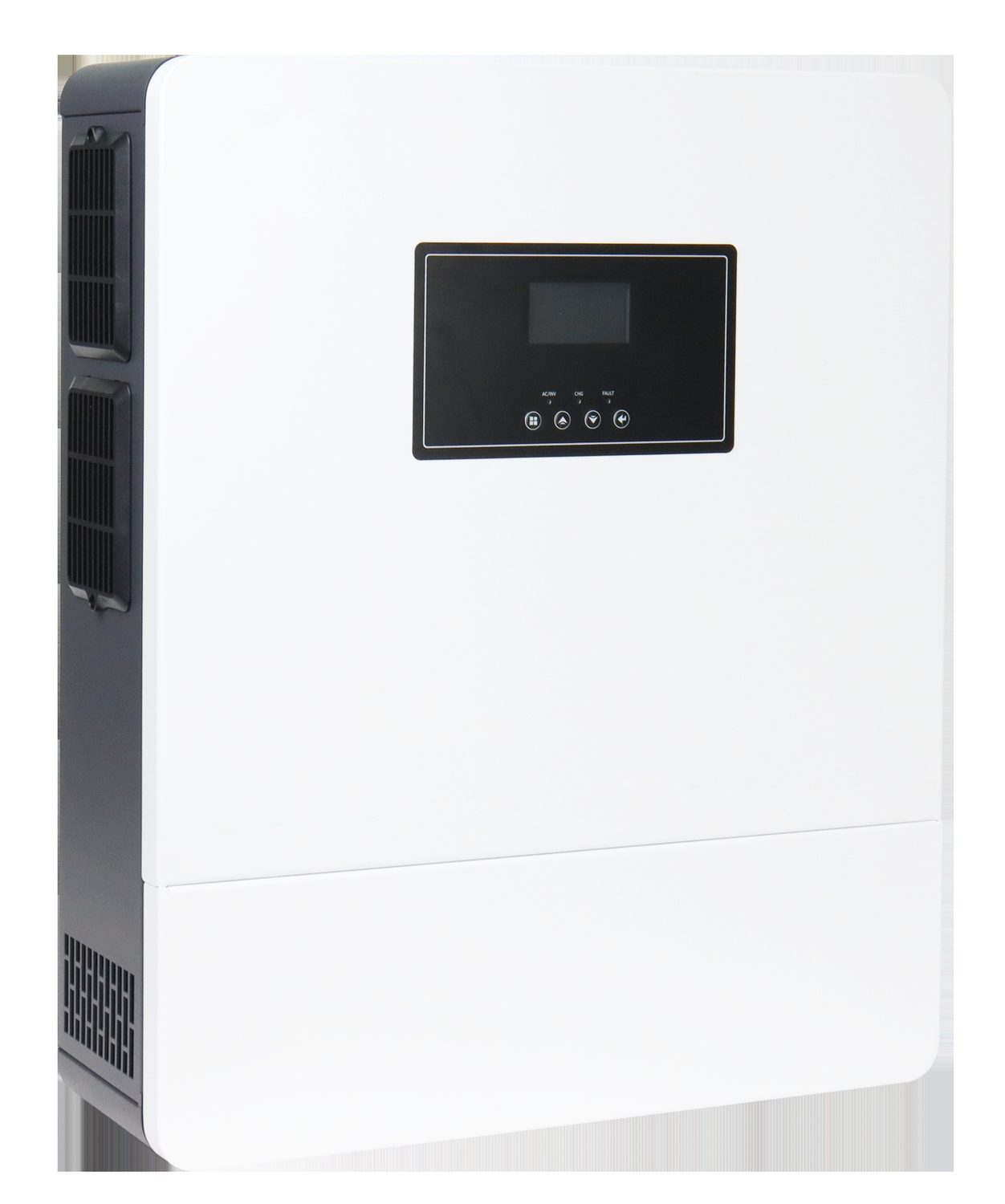

HE300-12000-FP parallel hybrid solar inverter, front view with the LCD control panel — HE300-12000-FP — the parallel model of the HE300 line, 48 V battery, up to 9 units for 99 kW.

Specifications

Category	Item	Value
Inverter output	Maximum output power	99,000 W (9 units, expanded) / 99,000 W (9 units, split-phase)
	Maximum output voltage	240 Vac ±5% (single phase) / 415 Vac ±5% (three phase)
	Maximum output current	450 A (expanded) / 260 A (split-phase)
	Output frequency	50/60 Hz ±0.1%
	Output waveform	Pure sine wave
	Output topology	L1+N1+L2+N2+PE
	Max parallel units	9
Battery	Battery type	Lead-acid / lithium
	Rated battery voltage	48 Vdc
	Max combined PV charge current	150 A
PV input	MPPT strings	2 per unit, 18 across 9 units
	Maximum input power	7500 W per string
	Maximum open-circuit voltage	500 Vdc
	Maximum short-circuit current	2 × 27 A
	Working voltage range	90–450 Vdc (catalogue) / 90–500 Vdc (spec sheet)
	Max conversion efficiency	98%
Grid / generator input	Input voltage range	90–280 Vac ±3 V (APL) / 170–280 Vac ±3 V (UPS)
	Rated input voltage	230 Vac
	Input frequency	50/60 Hz
General	Dimensions	550 × 466 × 144 mm
	Packing dimensions	633 × 550 × 235 mm
	Net weight	21.3 kg
	Gross weight	24.8 kg
	Protection rating	IP21
	Operating temperature	−10 to 50 °C
	Noise	≤50 dB
	Cooling	Smart fan cooling
	Humidity	20–95%

An IP54 variant, HE300-12000-FP-I5, carries the same electrical specification in a sealed enclosure at 23.15 kg — 600 × 505 × 145 mm, packing 705 × 604 × 255 mm, gross 27 kg. It is a separate model: the IP54 rating does not carry over from the IP21 version.

Features unique to this model

9-unit parallel expansion — to 99,000 W, as single-phase expansion or 415 Vac three-phase.
Dual MPPT per unit — two strings per unit, eighteen across nine units, 7500 W per string.
150 A combined PV charge current.
98% maximum conversion efficiency (DC/AC).
≤50 dB — a figure that matters when nine units are installed together.

How parallel expansion works

Each unit carries its own two MPPT strings, up to 7500 W per string, so nine units accept up to eighteen PV strings. Battery, output and control are interconnected. The system presents to the load as a single supply — 240 Vac single-phase, or 415 Vac three-phase.

Planning implications:

Battery bank scales with the system, not the unit. Nine units charging at up to 150 A each is a very large combined charge current. The bank must be sized so the combined charge current stays within the chemistry's 0.2C (lead-acid) or 0.5C (lithium) limit. This is the single most common sizing error on parallel systems, and it is the one that ends in a swollen bank.
Cable and protection are system-level. Three-phase output at 260 A per phase and single-phase at 450 A require appropriately rated switchgear. Neither figure is a detail you can leave until installation day.
Start with the load. Decide the target output, divide by the single-unit class, then confirm the battery and PV can support that many units.

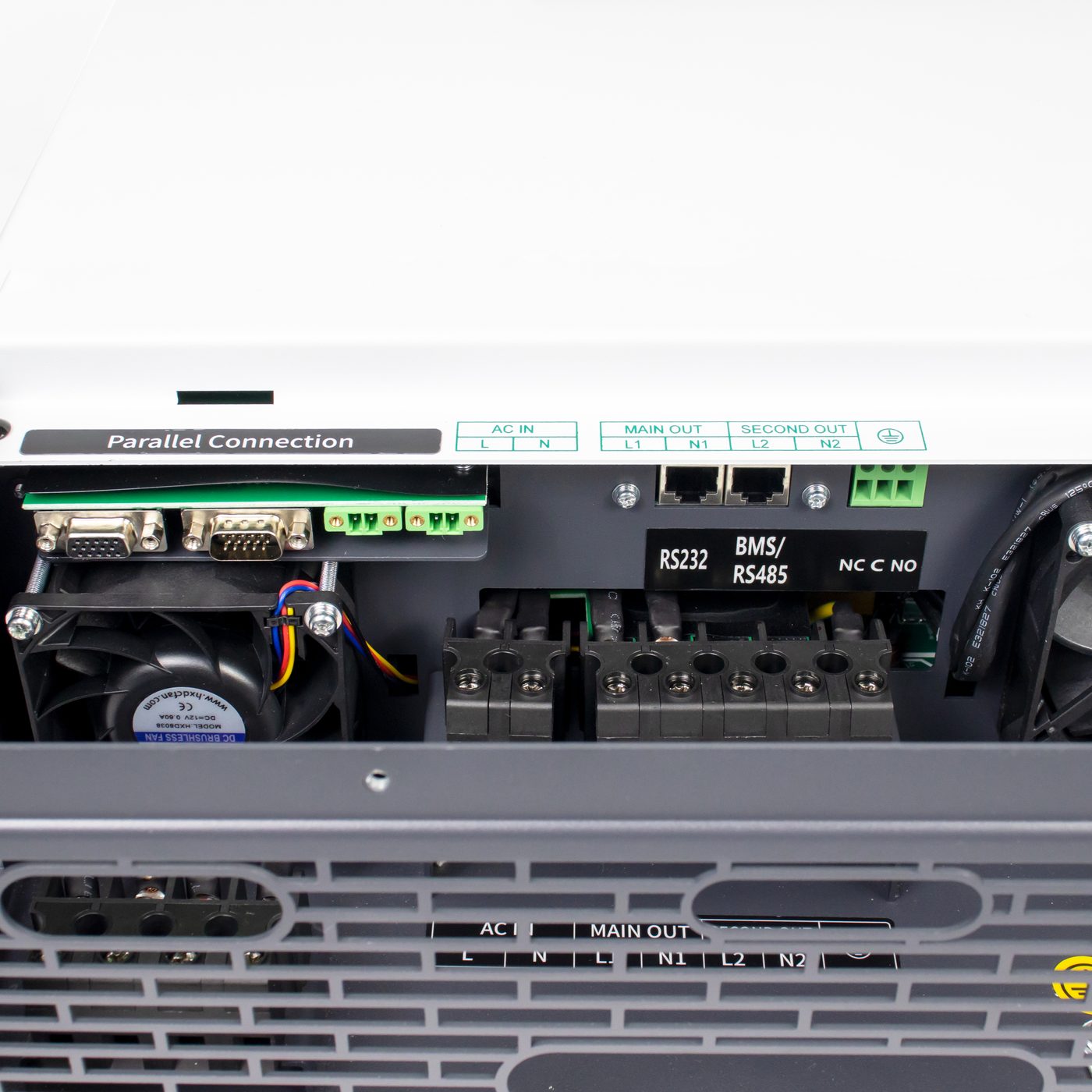

Close-up of the HE300-12000-FP parallel-connection terminals and communication ports — Parallel-connection terminals seen from the connection side — this is the point at which separate units become one system.

Typical applications

Commercial and light-industrial sites needing three-phase supply with backup.
Rural electrification where a 415 Vac three-phase network is required.
Larger agricultural installations with multiple pumps and motors.
Sites that expect to grow: capacity is added a unit at a time rather than by replacing the system.

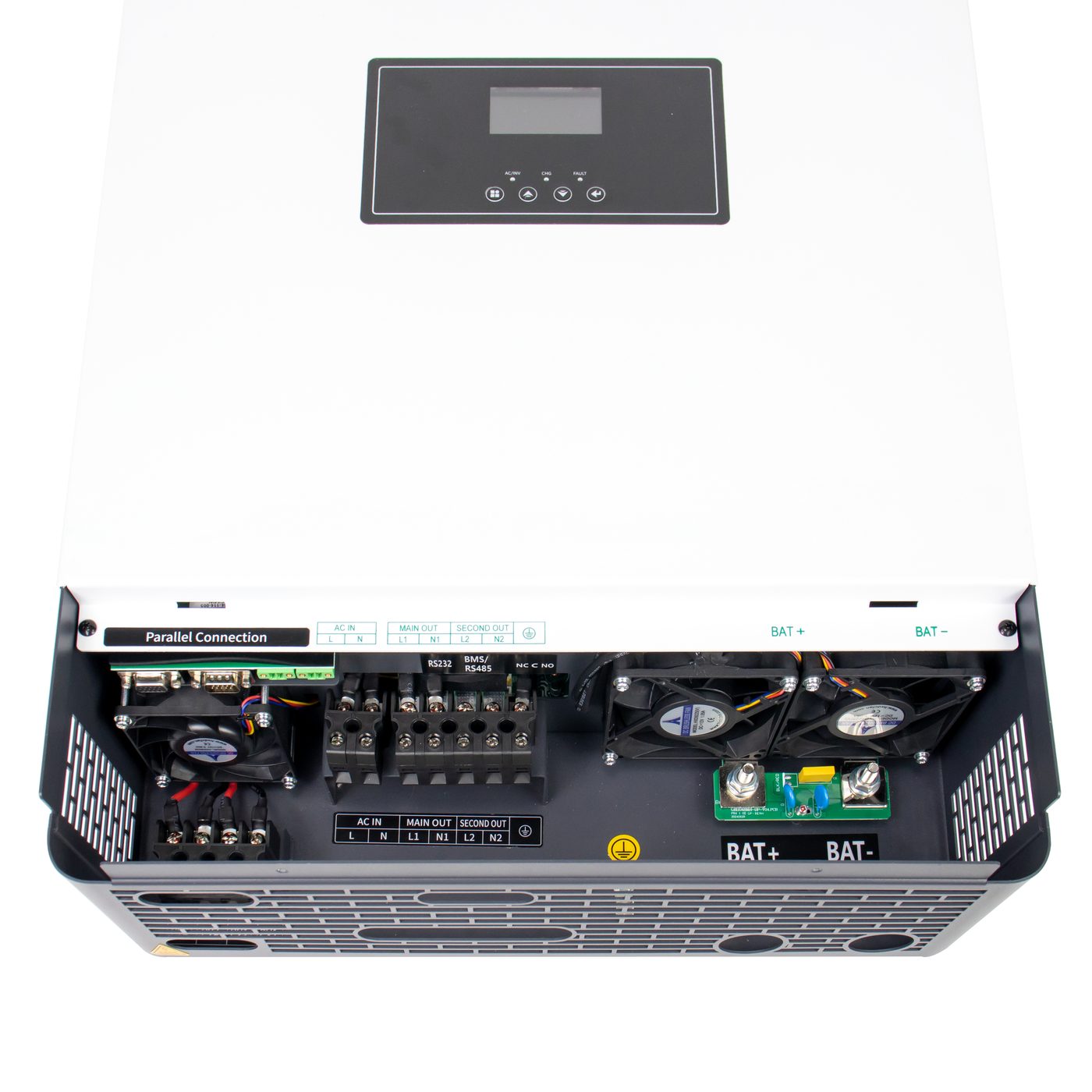

Underside of the HE300-12000-FP showing the terminal row and the battery connection points — Underside — terminal row and battery connections. System-level cable and breaker ratings are in the manual for the unit.

Connections, monitoring and accessories

Terminal layout, system wiring, monitoring options and the accessories supplied with the unit.

Bottom terminal row on the HE300-12000-FP, showing the AC and DC connection points — Bottom terminal row on the HE300-12000-FP.

Phone showing the Wi-Fi monitoring app connected to an HE300-12000-FP inverter — Optional Wi-Fi module — monitoring and parameter setting from a phone.

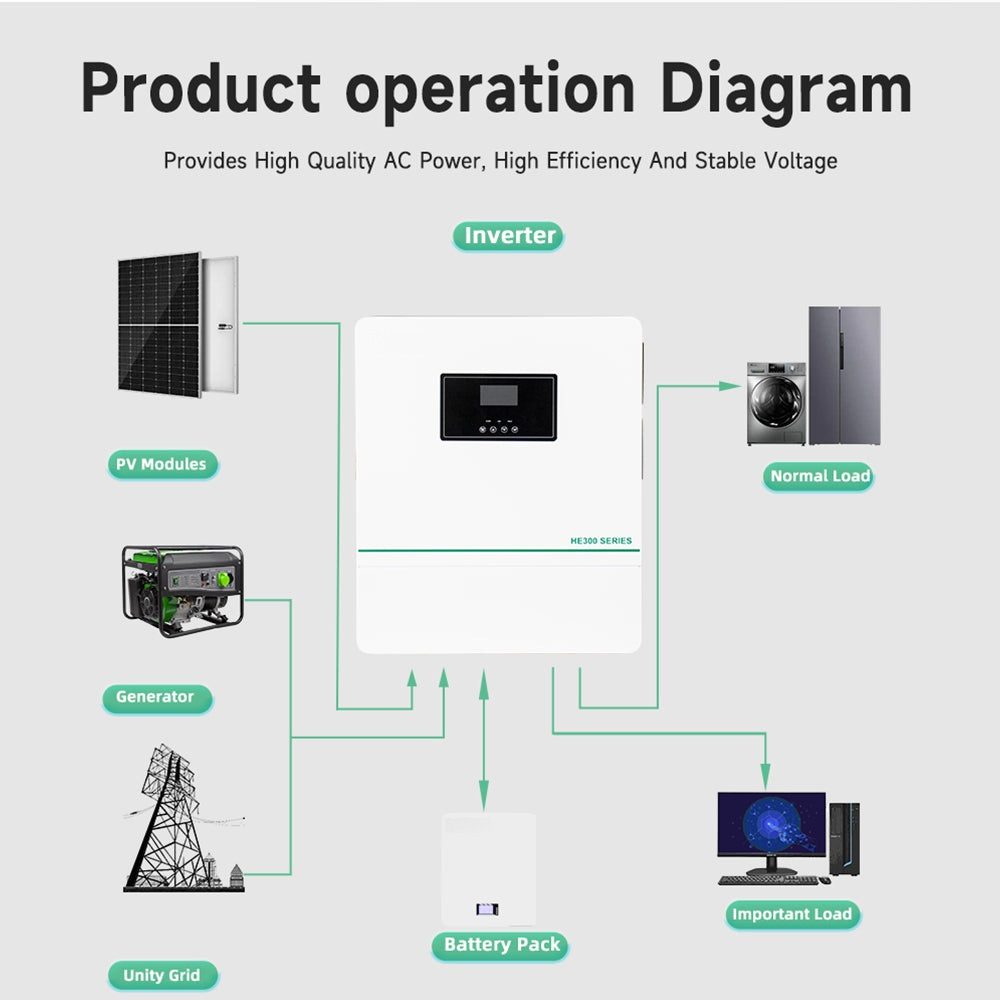

Product operation diagram for the HE300-12000-FP: PV array, grid, battery bank, loads and communication on one diagram — System layout — PV array, grid input, battery bank, backed-up loads and monitoring on one diagram.

Certification coverage

Certification	Status
CE (EMC) — CKEYS251201016	Covered (listed model)
CE (LVD + EMC) — M.2025.206.C116069	Not held for this model
FCC SDoC — CKEYS251013025	Covered (series)
RoHS 2.0 — CKEYS251013024	Covered (series)
GB 4943.1-2022 — RKEYS250917157	Covered (series)
GB 4943.1-2022 — BDL260706S002	Covered (series)

Two points worth stating precisely. The CE file for this model covers the EMC directive only — it is not an LVD+EMC certificate, and the UDEM LVD+EMC certificate does not list any HE300 model. Separately, GB 4943.1-2022 is a Chinese national safety standard, not a CE mark. If a buyer requires CE under both directives, tell us and we will state the position rather than imply coverage. Every certificate number and its covered model range is on the certifications page.

Related models

Single-unit equivalent: HE300-12000-F — 11,000 W, dual MPPT
Smaller parallel system: HE200-7200-FP — 58.5 kW across 9 units
Low-frequency build for high-surge loads: HE310-5000-F
