How many units can be paralleled?

Up to 9 units, giving 58,500 W in either single-phase or three-phase (415 Vac) configuration.

Does it support generator auto-start?

Yes. This model supports generator auto-start, and includes RS232 communication plus an external Wi-Fi module for app and cloud monitoring with OTA updates.

Is each unit 58.5 kW on its own?

No. 58,500 W is the total across 9 paralleled units. A single unit is in the 6.5 kW class.

HE200-7200-FP — Paralleled Hybrid Inverter, up to 58.5 kW

Name: HE200-7200-FP Solar Inverter
Brand: Grenkago
SKU: HE200-7200-FP
Availability: InStock

One line: Scale to 58.5 kW by paralleling nine units, with three-phase output, generator auto-start and cloud monitoring.

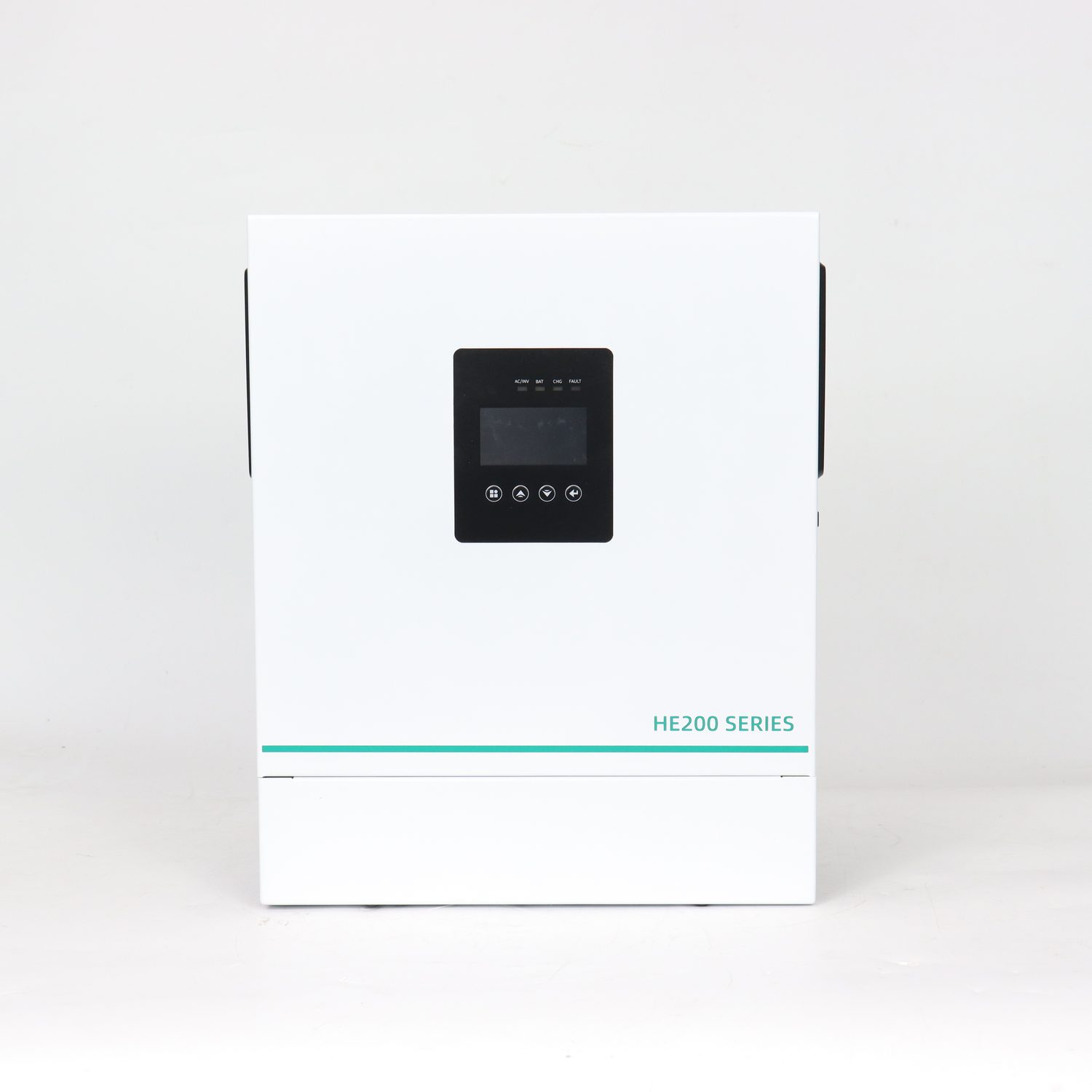

HE200-7200-FP 6200 W 48 V parallel-capable hybrid solar inverter, front view with the LCD panel — HE200-7200-FP, front view — the parallel-capable version of the 48 V 6,200 W platform.

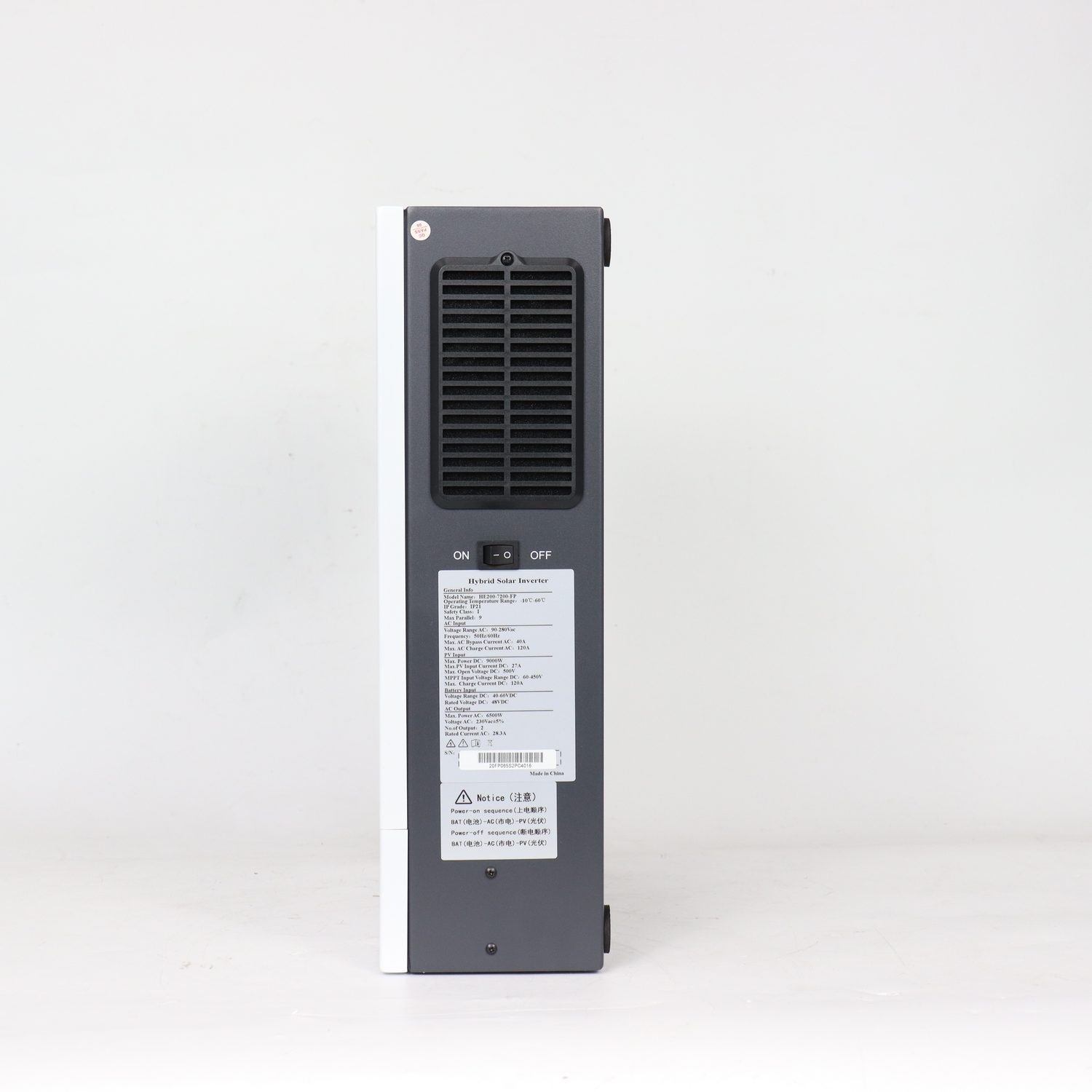

Side and rear view of the HE200-7200-FP parallel-capable inverter showing the rating label — HE200-7200-FP — parallel-capable version of the 48 V 6,200 W platform, up to 9 units for 58.5 kW.

Specifications

Category	Item	Value
Inverter output	Maximum output power	58500 W (9 units, expanded) / 58500 W (9 units, split-phase)
	Maximum output voltage	240 Vac ±5% (single phase) / 415 Vac ±5% (three phase)
	Maximum output current	265.9 A (single phase) / 153.95 A (three phase)
	Output frequency	50/60 Hz
	Output waveform	Pure sine wave
	Output topology	L1+N1+L2+N2+PE
	Max parallel units	9
Battery	Battery type	AGM / lithium
	Rated battery voltage	48 Vdc
	Max combined PV charge current	120 A
PV input	MPPT strings	1 per unit, 9 across 9 units
	Maximum input power	9000 W per string
	Maximum open-circuit voltage	500 Vdc
	Maximum short-circuit current	27 A
	Open-circuit working range	60–450 Vdc
	Max PV charge efficiency	99.5%
Grid / generator input	Input voltage range	90–280 Vac
	Rated input voltage	220 Vac
	Input frequency	50/60 Hz
	Maximum current	40 A
General	Dimensions	397 × 332 × 118 mm
	Packing dimensions	478 × 410 × 205 mm
	Net weight	8.7 kg
	Gross weight	9.8 kg
	Protection rating	IP21
	Operating temperature	−10 to 60 °C
	Cooling	Smart fan cooling
	Humidity	5–95%

Features unique to this model

Generator auto-start — the unit can start a connected generator automatically.
RS232 communication plus Wi-Fi.
External Wi-Fi module — app and cloud platform showing generation data, fault alarms, with OTA firmware updates.
9-unit parallel — single-phase expansion or three-phase (415 Vac) output.

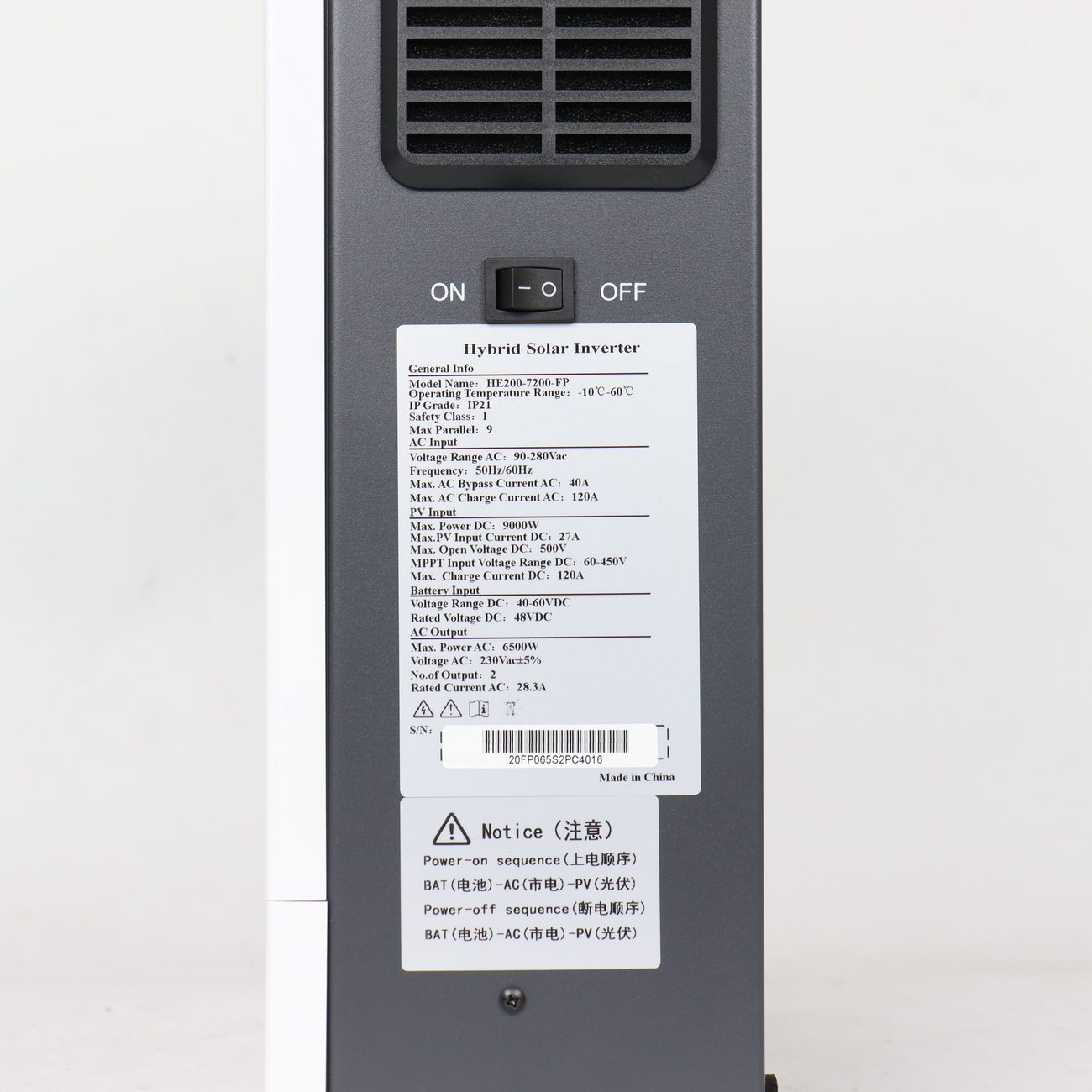

Rear of the HE200-7200-FP showing the main ON/OFF switch and the rating label — Rear panel — main ON/OFF switch and rating label.

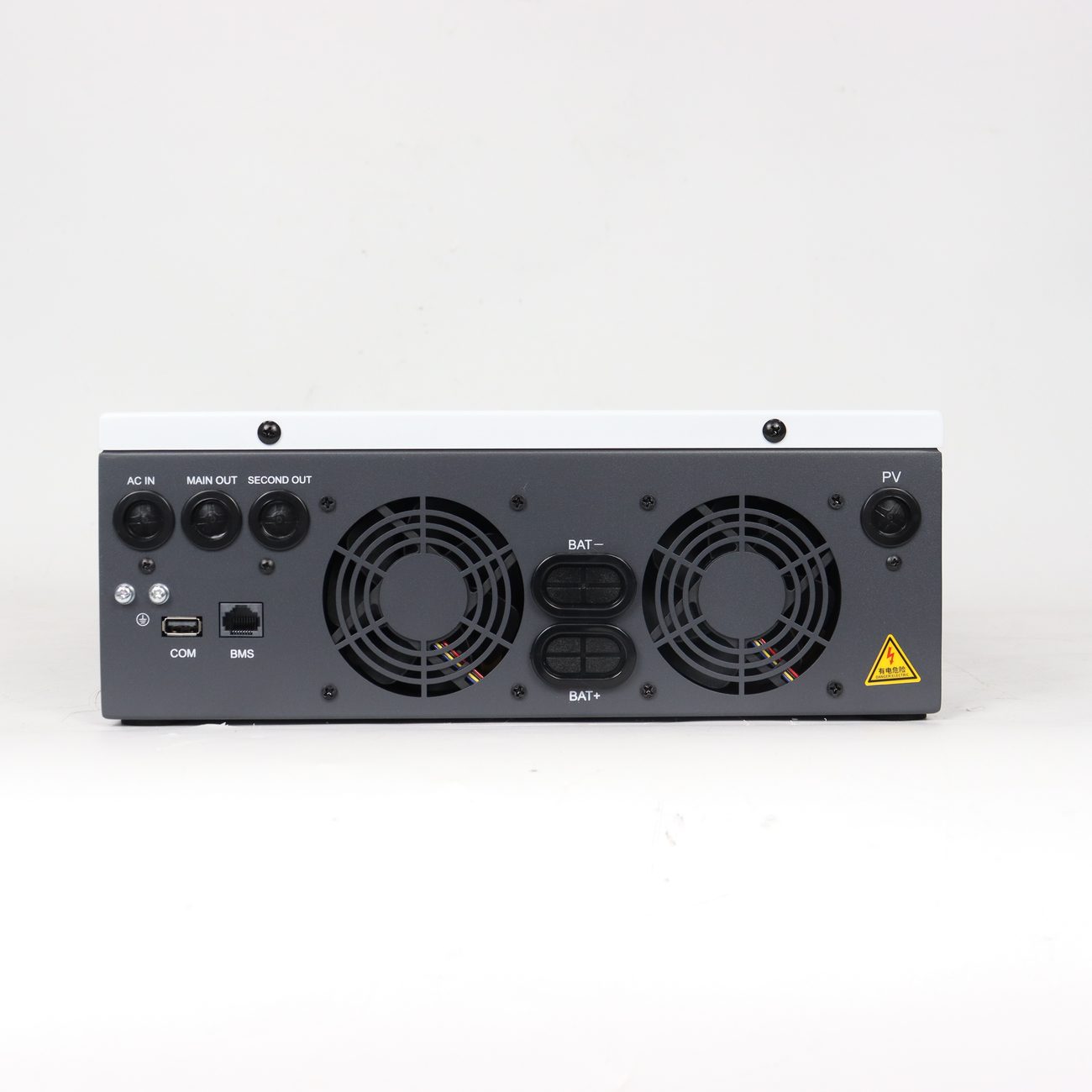

Underside of the HE200-7200-FP with the parallel-connection terminals and dual fans — Underside — parallel-connection terminals alongside the standard terminal row.

How parallel expansion works

Each unit carries its own MPPT string (up to 9000 W), so nine units accept up to nine PV strings. Battery, output and control are interconnected. The system presents to the load as a single supply — 240 Vac single-phase, or 415 Vac three-phase.

Planning implications:

Battery bank scales with the system, not the unit. Nine units charging at up to 120 A each is a very large combined charge current. The battery bank must be sized so the combined charge current stays within the chemistry's 0.2C (lead-acid) or 0.5C (lithium) limit. This is the single most common sizing error on parallel systems.
Cable and protection are system-level. Three-phase output at 153.95 A per phase and single-phase at 265.9 A require appropriately rated switchgear.
Start with the load. Decide the target output (say 40 kW), divide by the single-unit class, then confirm the battery and PV support that many units.

Typical applications

Commercial and light-industrial sites needing three-phase supply with backup.
Rural electrification where a 415 Vac three-phase network is required.
Larger agricultural installations with multiple pumps and motors.
Sites with a standby generator where auto-start removes manual intervention.

Connections, monitoring and accessories

Terminal layout, system wiring, monitoring options and the accessories supplied with the unit.

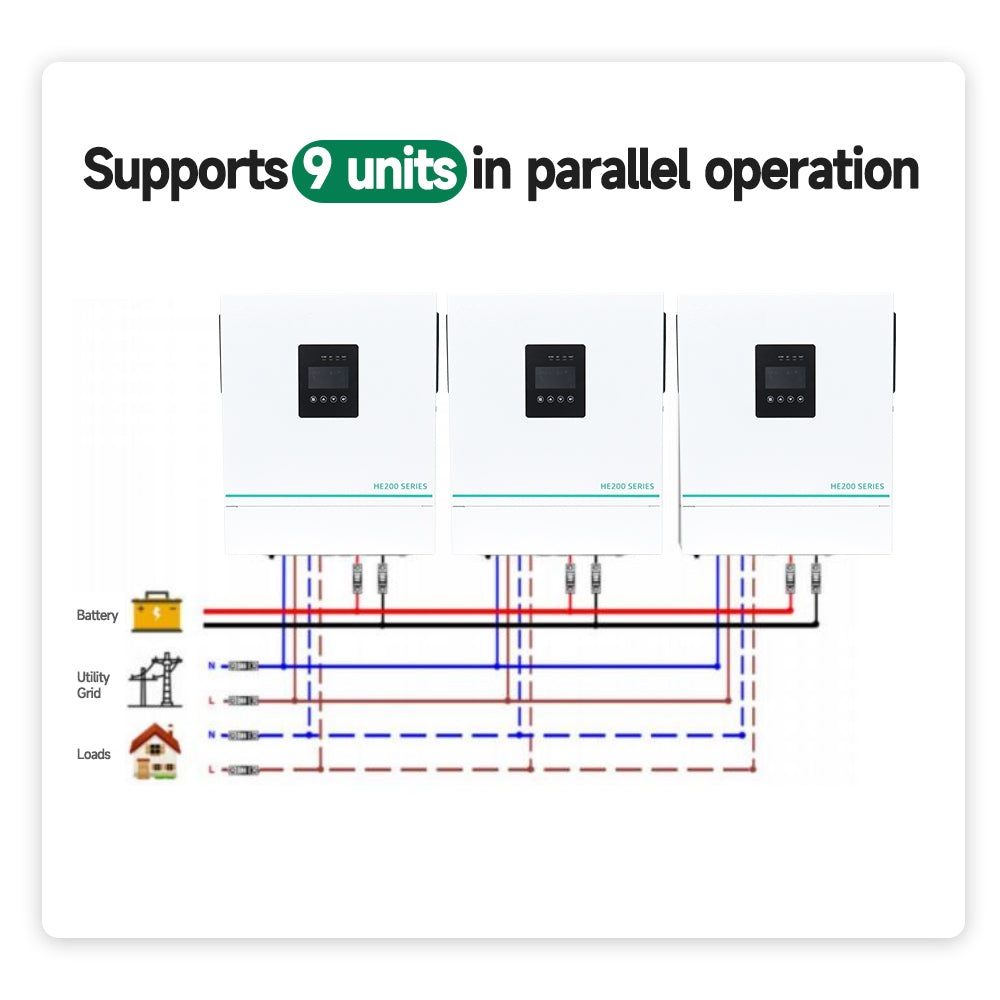

Parallel operation diagram showing up to nine HE200-7200-FP units wired on a shared bus — Parallel expansion — up to nine units on a shared bus for a larger single-phase supply.

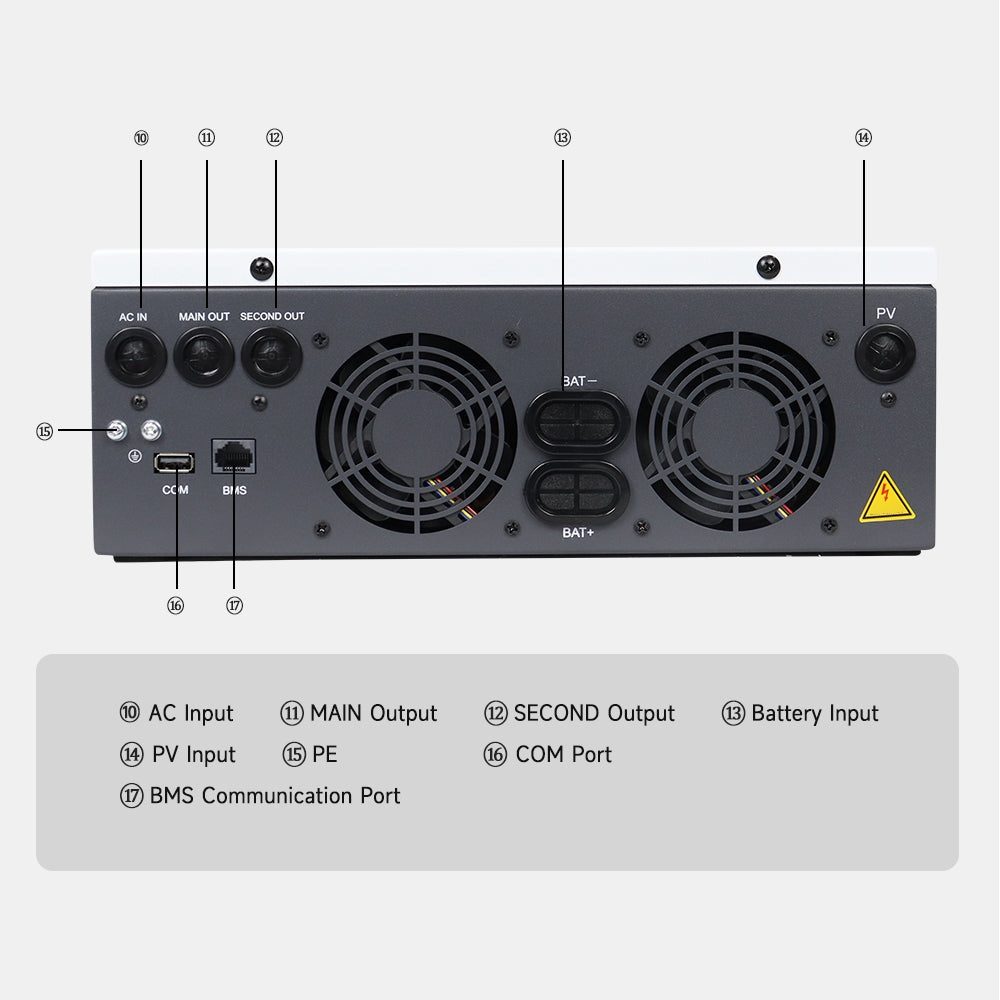

Interface legend for the HE200-7200-FP listing AC input, main and second output, battery input, PV input, PE, COM port and BMS communication port — Interface legend — AC input, main output, second output, battery input, PV input, PE, COM port and BMS communication port.

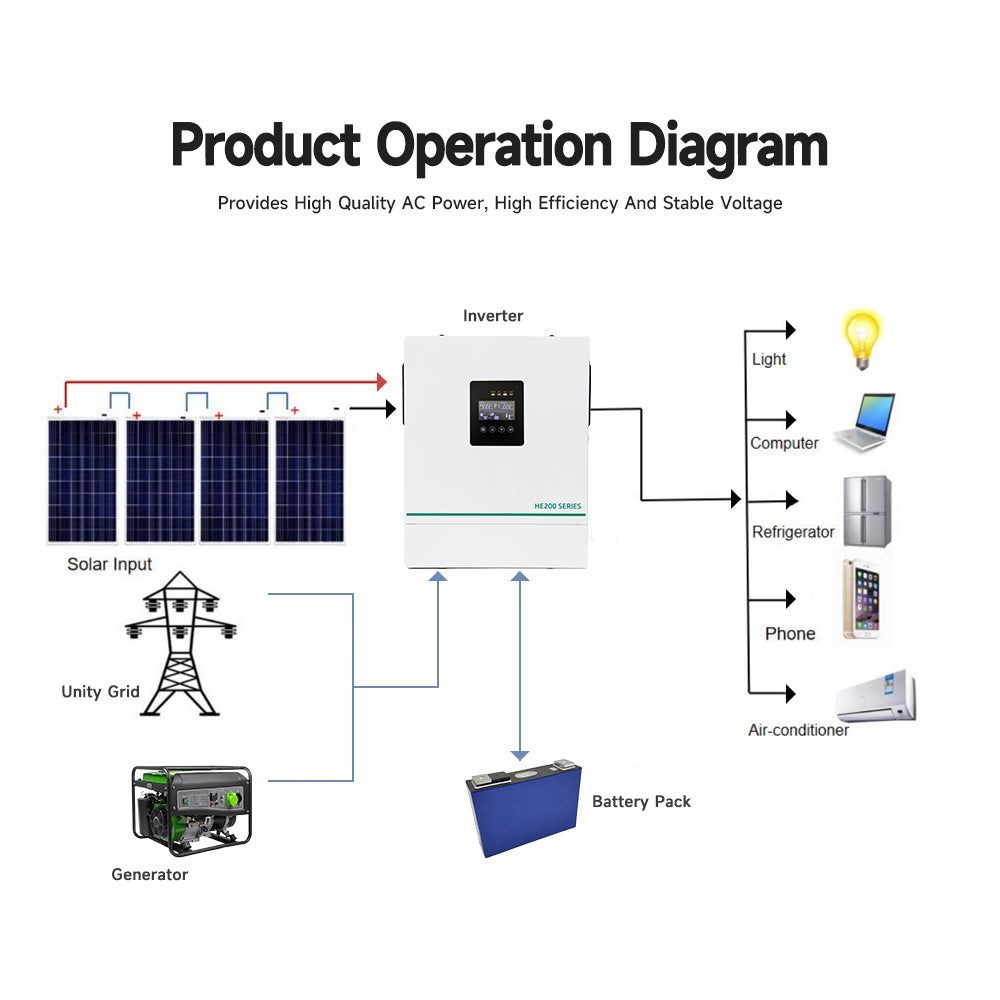

Product operation diagram for the HE200-7200-FP: PV array, grid, battery bank, loads and communication on one diagram — System layout — PV array, grid input, battery bank, backed-up loads and monitoring on one diagram.

Certification coverage

Certification	Status
CE (LVD + EMC) — M.2025.206.C116069	Covered (listed model)
FCC SDoC — CKEYS251013025	Covered (series)
RoHS 2.0 — CKEYS251013024	Covered (series)
GB 4943.1-2022 — RKEYS250917157	Covered (series)

Note: CE coverage is for the HE200-7200-FP model as listed on the UDEM certificate. Confirm the exact parallel configuration and any IP54 variant before quoting certification. Full detail on the certifications page.

Related models

Single-unit equivalent: HE200-7200-F — 6200 W
Larger parallel system: HE300-12000-FP — 99 kW across 9 units
