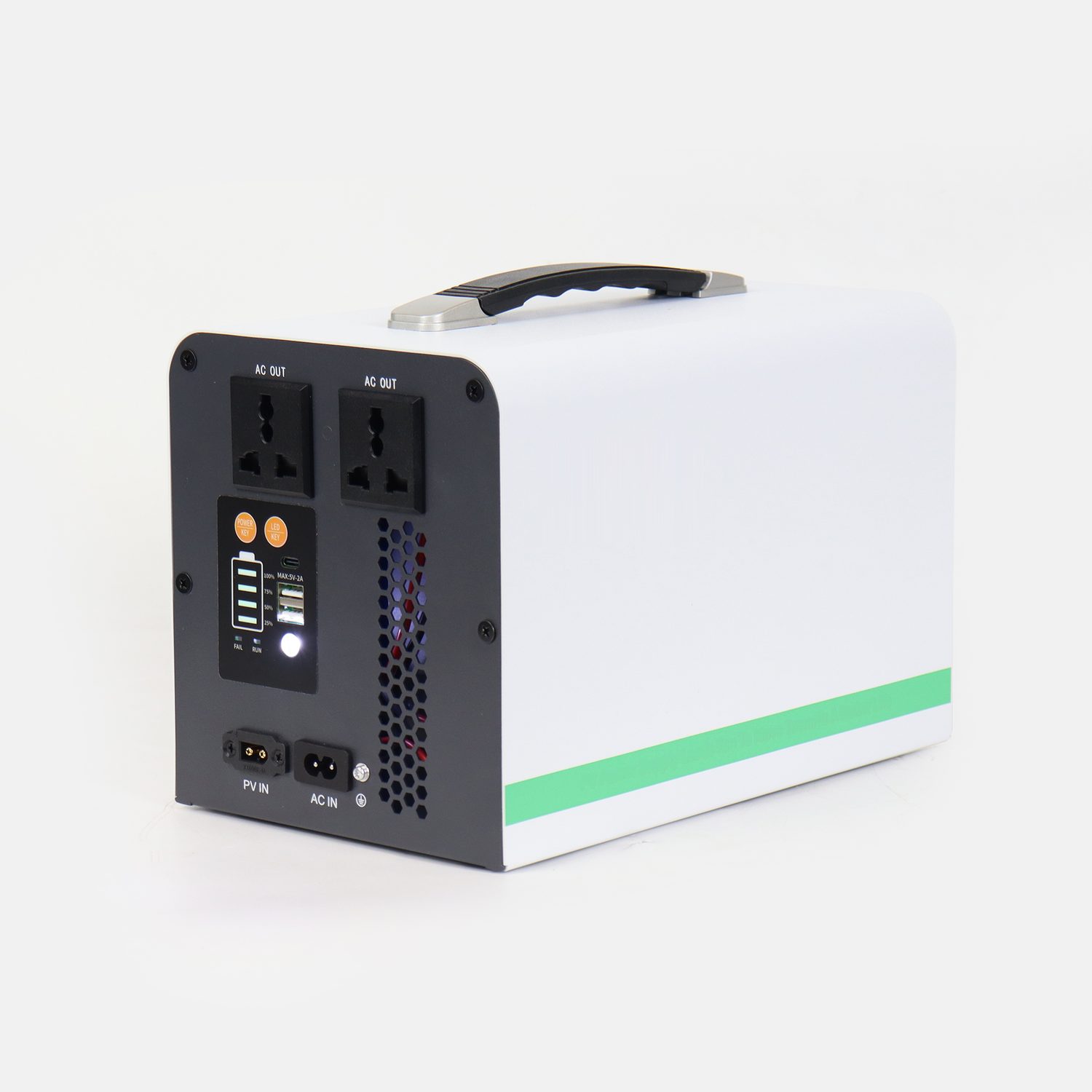

L2-N1T-500 — Portable Power Station, 1 kWh
One line: A 1 kWh portable station with 500 W AC output, LiFePO4 cells rated for 6000+ cycles, charged from solar or mains, with app control.
Specifications — cell DC
| Item | Value |
|---|---|
| Rated input voltage | 3.2 Vdc |
| Input voltage range | 2.5–3.65 Vdc |
| Under-voltage protection | 2.4 ± 0.5 Vdc (2 s delay, low-voltage shutdown) |
| Over-voltage protection | 3.8 ± 0.5 Vdc (2 s delay, over-voltage protection) |
| No-load consumption | ≤15 W |
| Rated output voltage | 3.2 Vdc |
| Rated charge efficiency | ≥86% |
| Charge current protection | 240 A ± 10 A |
| Battery capacity | 1004.8 Wh (≈1 kWh) |
Specifications — PV input
| Item | Value |
|---|---|
| Max PV power | 500 W |
| PV input voltage range | 12–60 Vdc |
| PV input current range | 0–18 A |
| PV under-voltage protection | 11 ± 0.5 Vdc |
| PV over-voltage protection | 62 ± 1 Vdc |
Specifications — utility input
| Item | Value |
|---|---|
| Rated input voltage | 230 Vac |
| Rated input current | 5 A |
| Input voltage range | 170–280 Vac |
| Input frequency range | 45–65 Hz |
| Max charging power | 500 W |
| Power factor | ≥0.98 |
Specifications — AC output
| Item | Value |
|---|---|
| Rated output voltage | 230 Vac |
| Output voltage range | 220–240 Vac |
| Rated output power | 500 W |
| Output frequency | 50/60 Hz |
| Output efficiency | ≥87% |
| Output waveform | Standard sine wave |
Specifications — general
| Item | Value |
|---|---|
| Dimensions | 282 × 160 × 186 mm |
| Packing dimensions | 356 × 234 × 274 mm |
| Net weight | 10.11 kg |
| Gross weight | 10.86 kg |
Operation
| Function | Action |
|---|---|
| Power on | Hold POWER/KEY for >2 s |
| Power off | Short press, or hold for >1 s |
Charge indicator: 25% / 50% / 75% / 100%. While charging, the charge icon flashes (0.5 s on, 0.5 s off). Below 1% charge, the red light flashes for 10 seconds and the system shuts down automatically. A solid red light indicates output fault protection — restart to reset.
Features
- 6000+ charge cycles — a service life of 10 years or more in typical use.
- Deep-discharge tolerant and safe, without the explosion risk of some chemistries.
- App control for monitoring and operation.
- Dual charging — solar and utility.
- Maximum 60 V PV input — compatible with the vast majority of standard solar panels.
Where it fits
The 1 kWh capacity at 500 W output suits:
- camping and outdoor use — lights, phone and laptop charging, a small cooler;
- a market stall or mobile point of sale;
- backup for a router, phone and a light during an outage;
- field work where no mains power is available.
It is not a home backup unit — 500 W and 1 kWh cover small, short-duration loads. For that, see the all-in-one energy storage range.

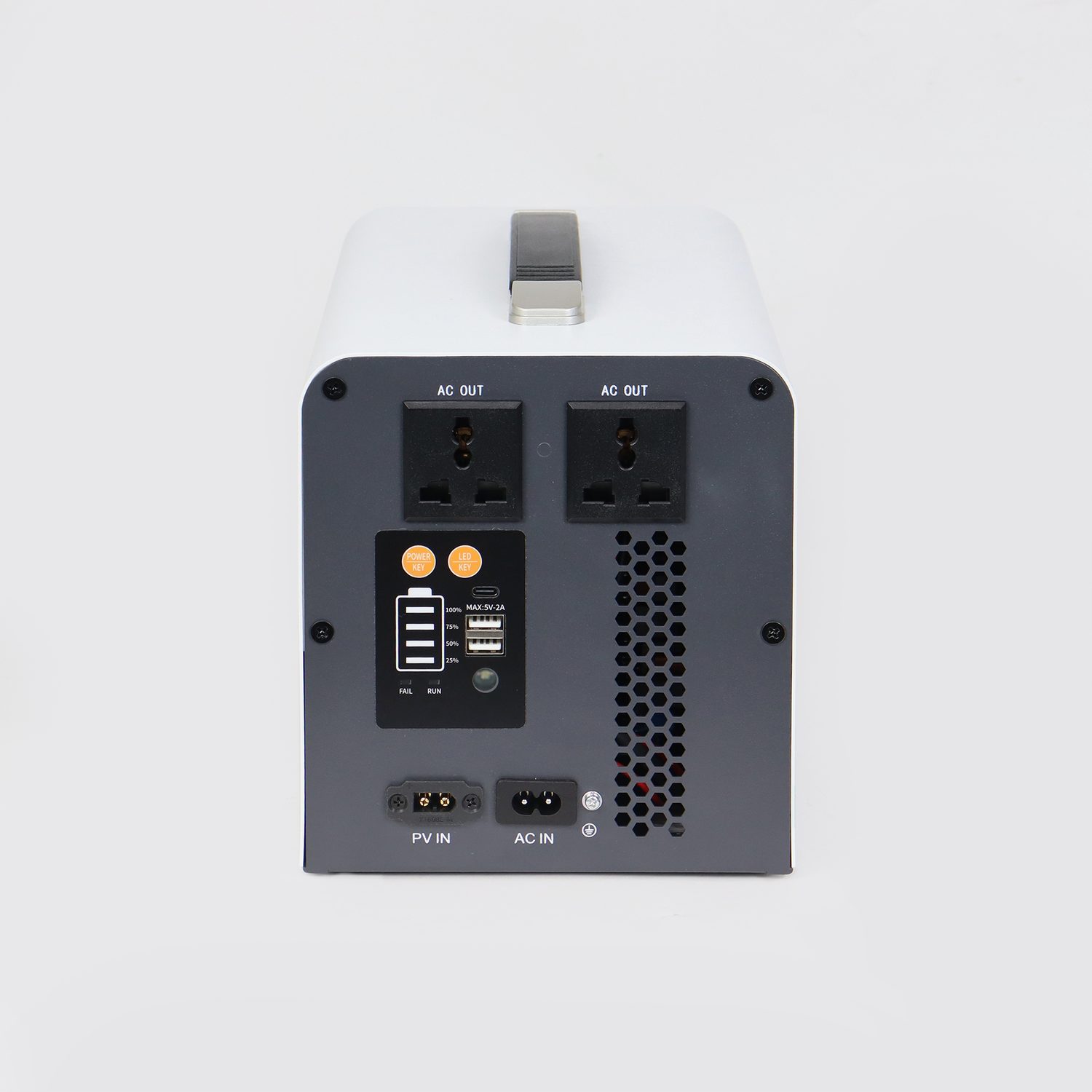

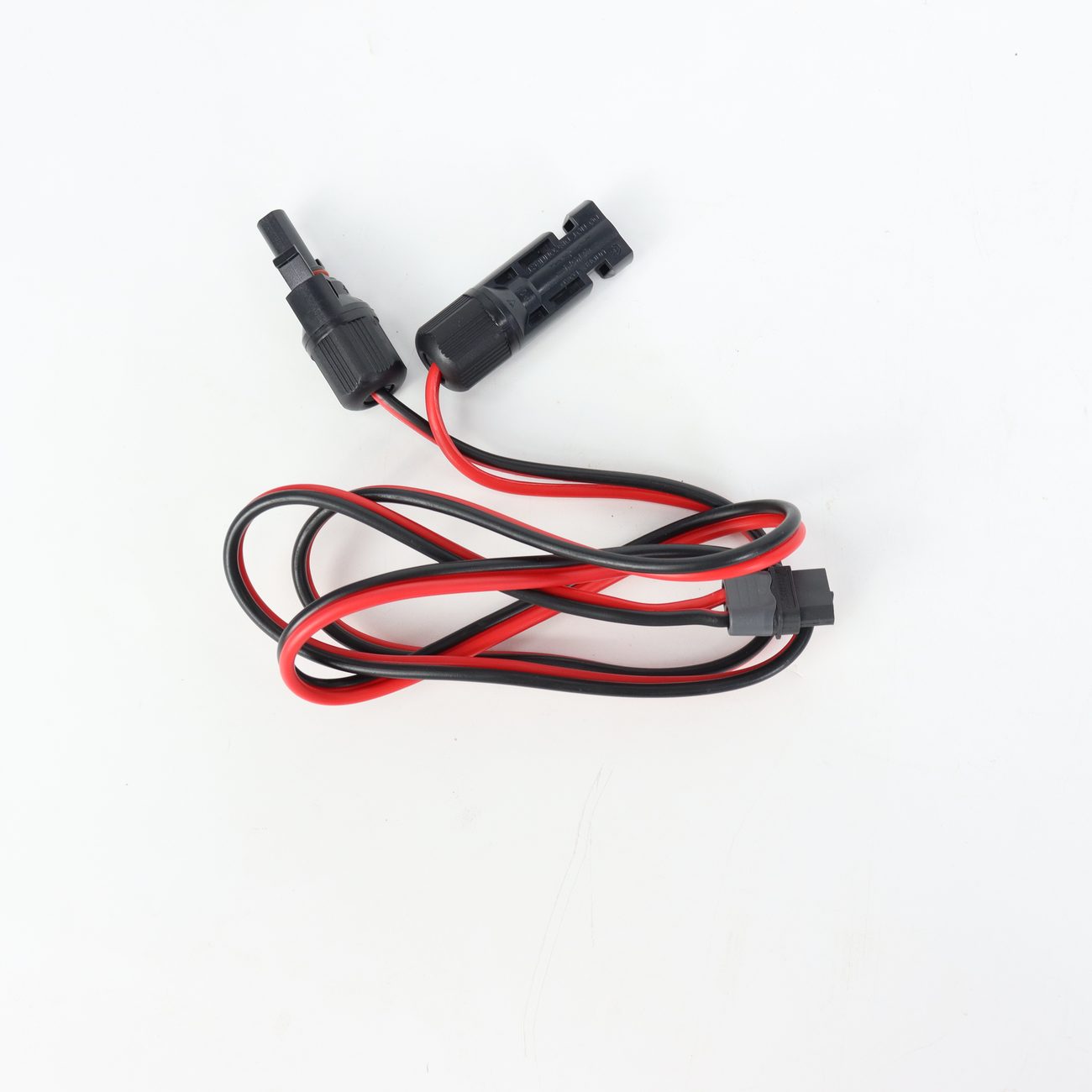

Connections, monitoring and accessories
Terminal layout, system wiring, monitoring options and the accessories supplied with the unit.
Certification and transport
| Certification | Status |
|---|---|
| CE / FCC / RoHS | Not held |
| UN38.3 | Not held |
No certification files are held for this model, and no UN38.3 report. Because it contains a lithium cell, UN38.3 is required for air and sea transport booking. Confirm shipping arrangements before ordering — see the certifications page.
